Auto Small Signal Transformer MABAES0034 RF 4/1 Impedance Ratio Wireless Application

Name: Auto Small Signal Transformer MABAES0034 RF 41 Impedance Ratio Wireless Application
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : MABAES0034

Certification : RoHS

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : MABAES0034 RF 4:1 Auto Transformer for wireless applications

Application : wireless applications

TR : 4:1

Feature : RF transformer

Material : Core

Sample : Free

Contact Now

MABAES0034 RF 4:1 Auto Transformer for wireless applications

Features
• Surface Mount
• 4:1 Impedance Ratio

Description:
MABAES0034 is a 4:1 RF transformer in a low cost, surface mount package. Ideally suited for high volume
cellular and wireless applications

Functional Configuration:

Function

Pin No.

Primary dot

Primary

Primary CT

Secondary dot

Secondary

Secondary CT

Case Ground

Not Connected

2,3

Absolute Maximum Ratings

Parameter

Absolute Maximum

RF Power

DC Current

Storage Temperature

250 mW

30 mA

-55°C to +100°C

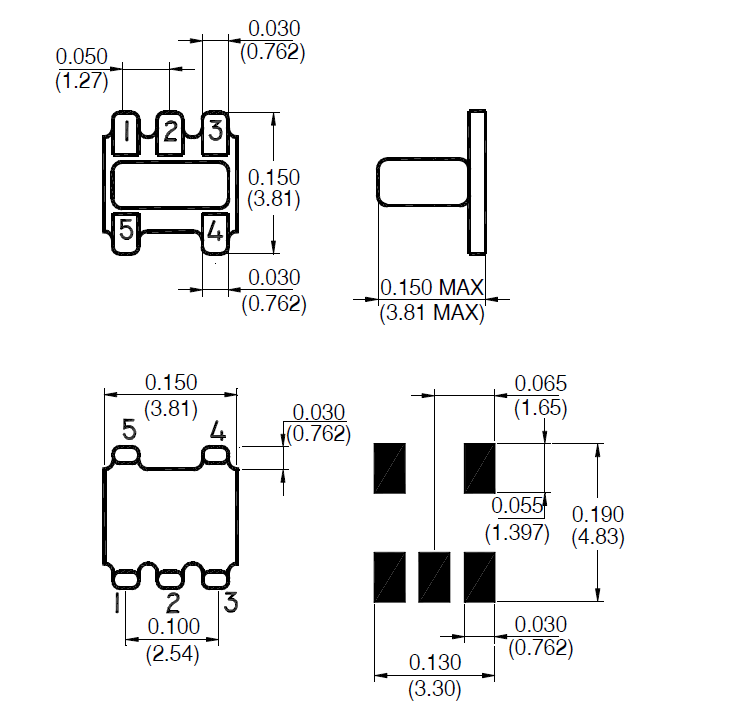

Dimensions:
