JD0-0003NL All Plastic Rj45 Modular Jack With Finger And Double Lights

Brand Name : Shareway

Model Number : JD0-0003NL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel

Product name : JD0-0003NL All Plastic RJ45 JACK with Finger and Double Lights

Pin : 8p8c

Material : ABS/PBT/PA66

Shield : Shielded / unshielded

Isolation : 1500VAC or 2250VDC

Type : RJ45

Contact Now

JD0-0003NL All Plastic RJ45 JACK with Finger and Double Lights

Electronical Specifications:

  1. Turn Ratio @100KHz:   (P1-P2):(J1-J2) = 1:1± 5%                                                                                                        (P3-P6):(J3-J6) = 1:1± 5%
  2. Primary Inductance: 350uH MIN @100KHz, 0.1V 8mA DC BIAS
  3. DC Resistance: (P1-P2):(J3-J6)     1.2 OHMS MAX
  4. Insertion Loss: 1-100MHz       -1.2dB MAX
  5. Return Loss:                  1-30MHz     -16dB MIN                                                                   30-60MHz              -12dB MIN                                          60-80MHz -10dB MIN
  6. Cross Talk: 1-100MHz     -30dB MIN
  7. Common to common mode attrnuation : 1-100MHz   -30dB MIN
  8. Isolatioon : PHY Side to Line Side : 1500VAC  or  2250VDC



Part Number
 JD0-0003NL
Application-LAN
 ETHERNET(NoN POE)
AutomDX
 YES
Bst Circuit
 YES
Configuration RX
 T,C
Configuration TX
 T,C
Contact Mating Area Plating
 GOLD 6u"/15u"/30u"
Cores Per Port
 SINGLE
Diodes
 NO DIODES
LED Option
 YELLOW/GREEN
Latch
 DOWN
Number of Ports
 1X1
PCB
 FR4
PCB Mount Angle
 SIDE ENTRY
PCB Retaining Post
 T POST
Pin Type
 THT SOLDER
RoHS Compliant
 YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
 YES
Shield EMI Tabs
 WITH
Shielding
 Shielded
Temperature
 -0 ~ 70℃
Turns Ratio RX
 1CT:1
Turns Ratio TX
 1CT:1





JD0-0003NL All Plastic RJ45 JACK with Finger and Double Lights

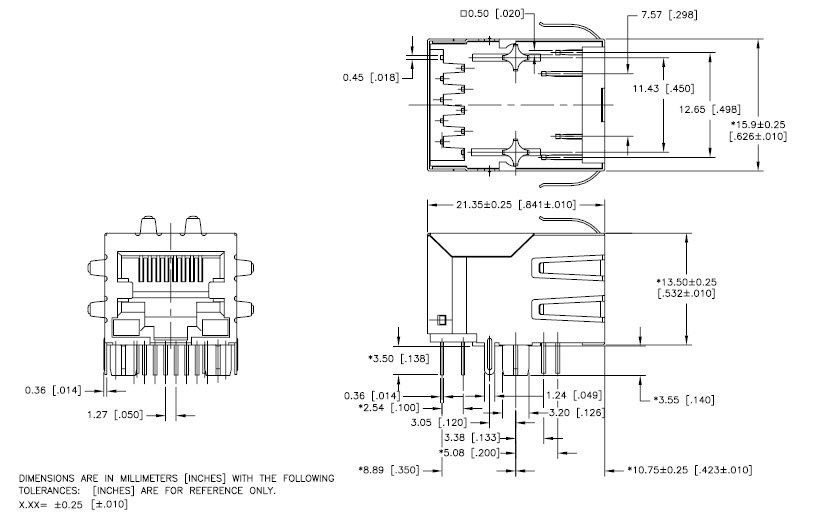

Shape and Dimensions:

JD0-0003NL All Plastic Rj45 Modular Jack With Finger And Double Lights
