0.7mH - 100mH Common Mode Choke Dual Choke Thru - Hole 0.5 - 2.0A IDC

Name: 07mH 100mH Common Mode Choke Dual Choke Thru Hole 05 20A IDC
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : MOX-CMCT SERIES

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel

Product name : 0.7mH to 100mH dual chokes Thru-hole Common Mode Choke MOX-CMCT SERIES

Mount : Thru-hole

Type : Dual chokes

Inductance : 0.7mH to 100mH

IDC : 0.5 - 2.0A

Storage temperature : -40°C to +125°C

Contact Now

0.7mH to 100mH dual chokes Thru-hole Common Mode Choke MOX-CMCT SERIES

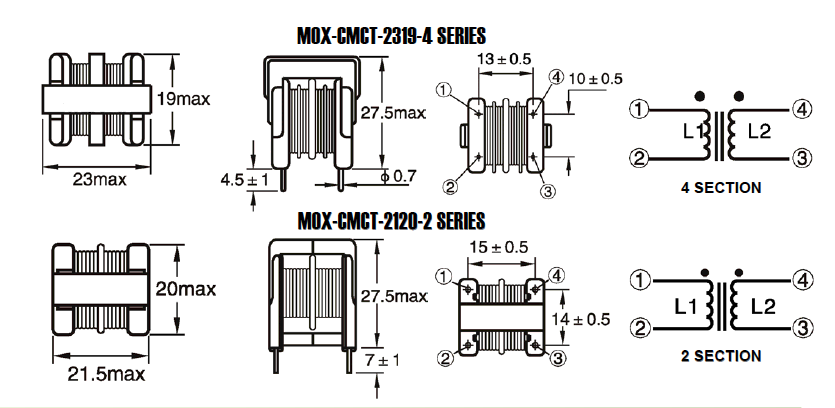

Shape and Dimensions:

• Low cost.
• Operating temperature: -40°C to +105°C.
• Storage temperature: -40°C to +125°C.
• RoHS compliant.
• 100KHz to 3MHz common mode resonance.
• 0.7mH to 100mH dual chokes.
• High reliability & variant PCB-mount housing.
• Low resistance & temperature rise.

Part Number	Inductance (mH)	Inductance Tolerance (μH) Max.	DCR (mΩ) Max.	IDC (A) Max.
MOX-CMCT-2319-1R0	1.0	60	0.4	1.0
MOX-CMCT-2319-1R8	1.8	80	0.6	0.8
MOX-CMCT-2319-2R5	2.5	80	0.6	0.8
MOX-CMCT-2319-4R0	4.0	100	0.7	0.8
MOX-CMCT-2319-6R0	6.0	100	0.8	0.8
MOX-CMCT-2319-7R9	7.9	100	0.8	0.8
MOX-CMCT-2319-100	10.0	140	0.8	0.8
MOX-CMCT-2319-140	14.0	140	1.0	0.5
MOX-CMCT-2319-200	20.0	160	1.2	0.5
MOX-CMCT-2319-250	25.0	160	1.2	0.5
MOX-CMCT-2319-320	32.0	200	2.0	0.5
MOX-CMCT-2319-450	45.0	200	2.5	0.5
MOX-CMCT-1917-R60	0.6	50	0.12	2.0
MOX-CMCT-1917-R80	0.8	50	0.20	1.5
MOX-CMCT-1917-1R0	1.0	50	0.14	1.6
MOX-CMCT-1917-2R0	2.0	100	0.40	1.0
MOX-CMCT-1917-3R0	3.0	150	1.20	0.5
MOX-CMCT-1917-5R0	5.0	200	2.0	0.3
MOX-CMCT-1917-7R5	7.5	100	2.0	0.4
MOX-CMCT-1917-100	10.0	300	2.00	0.3
MOX-CMCT-2120-1R0	1.0	50	0.03	5.0
MOX-CMCT-2120-1R5	1.5	50	0.06	4.0
MOX-CMCT-2120-3R0	3.0	60	0.1	3.0
MOX-CMCT-2120-5R0	5.0	80	0.15	3.0
MOX-CMCT-2120-7R5	7.5	100	0.2	2.0
MOX-CMCT-2120-100	10.0	120	0.25	2.0
MOX-CMCT-2120-120	12.0	150	0.4	1.0
MOX-CMCT-2120-160	16.0	180	0.5	1.0
MOX-CMCT-2120-200	20.0	200	0.7	0.9
MOX-CMCT-2120-250	25.0	230	1.2	0.8
MOX-CMCT-2120-350	35.0	260	2.0	0.5
MOX-CMCT-2120-500	50.0	300	3.0	0.3

• Maximum operating voltage: 250V @ 40°C.
• IDC Maximum: Rating AC/DC current A @ 40°C.
• Temperature rise maximum: 40°C.
• Insulation resistance: 100mΩ minimum DC 500V

0.7mH to 100mH dual chokes Thru-hole Common Mode Choke MOX-CMCT SERIES

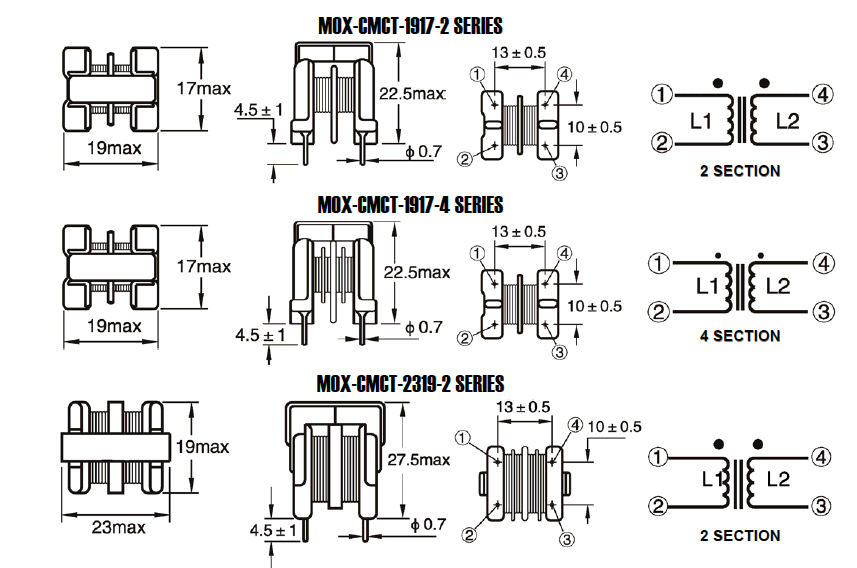

Shape and Dimensions:
