16 Pins HX1188NL / HX1188FNL Lan Transformer Designed to gigabit ethernet

Product Categories

SHAREWAY TECHNOLOGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 16 Pins HX1188NL HX1188FNL Lan Transformer Designed to gigabit ethernet
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel ,Tube

Product name : 16pins HX1188NL/HX1188FNL Lan Transformer Designed to support gigabit ethernet

Pin : 16pins

Application : Designed to support gigabit ethernet

operating Temperature : 0 To 70 ℃

Dimension , Size : 12.7*9.65*5.97

Sample : free

Contact Now

16pins HX1188NL/HX1188FNL Lan Transformer Designed to support gigabit ethernet

Description:

Operating Temperature Range: 0°C to +70°C / -25°C to +105°C

Turns Ratio: 1:1±5%

HiPot Test: 1500 Vrms

Inductance: 8mA DC BIAS 440uH Min

Size: 12.7*7.11*5.97mm

Core No :2

Speed : 10/100Base-T

Insertion loss :1-50MHz -0.5 dB Max
50-125MHz -1.0 dB Max
125-200MHz -2.0 dB Max

Return loss :1~40MHz -20 dB Minload 100Ω
40-200MHz -20+15*log(Freq MHz/40MHz) dB Minload 100Ω

16pins HX1188NL/HX1188FNL Lan Transformer Designed to support gigabit ethernet

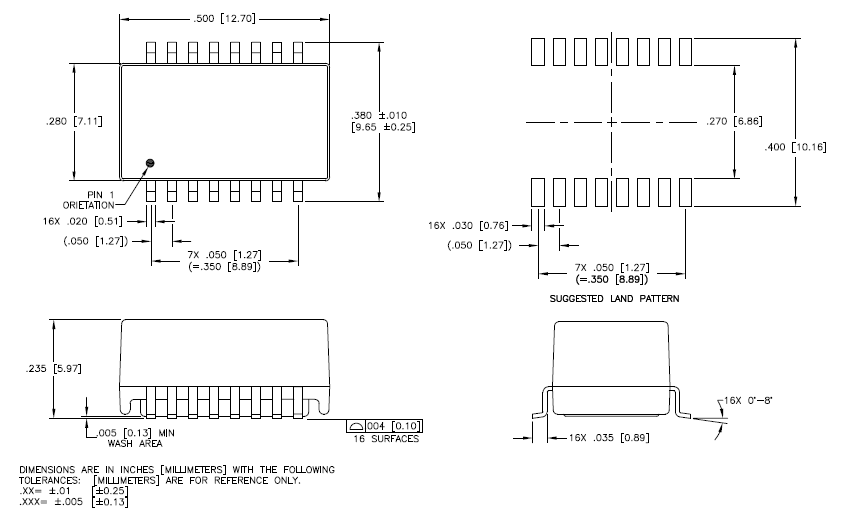

Shape and Dimensions:

16 Pins HX1188NL / HX1188FNL Lan Transformer Designed to gigabit ethernet
