13.16*15.11*6.12mm High Frequency Transformer H2305NL for PCB

Brand Name : Shareway

Model Number : H2305NL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Tray or Reel

Product name : 13.16*15.11*6.12mm High Frequency Transformer H2305NL for PCB

Type : High Frequency Transformer

Size : 13.16*15.11*6.12mm

Termination Style : Surface mount

Pin : 24pins

Frequency : High

Contact Now

13.16*15.11*6.12mm High Frequency Transformer H2305NL for PCB

Description:

Operating Temperature: 0℃～70℃.

Turns ratio : 1CT:1CT

Polarity : Per schematic

Insertion Loss: 100KHz: -1.2dB Max

Inductance: 350 uH MIN

1500VRMS min @ 60 seconds

Size:13.16*15.11*6.12mm

Pin: 24

Core No. :4

Speed : 1000Base-T

RoHS: with

Mounting :SMD/SMT





13.16*15.11*6.12mm High Frequency Transformer H2305NL for PCB

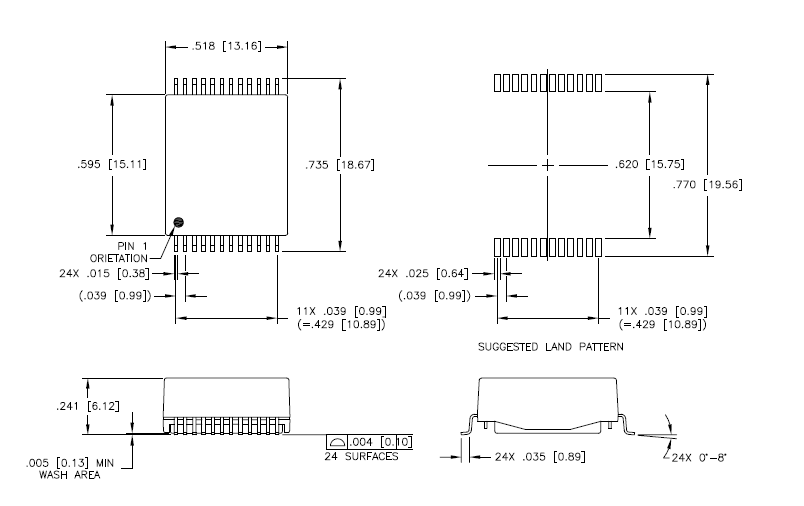

Shape and Dimensions:

13.16*15.11*6.12mm High Frequency Transformer H2305NL for PCB
