Surface mount Ethernet Lan transformer 350uH min 1500Vrms H1259FNL

Product Categories

SHAREWAY TECHNOLOGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Surface mount Ethernet Lan transformer 350uH min 1500Vrms H1259FNL
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : H1259FNL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : reel,tube

Product name : 350uH min 1500Vrms Surface mount Ethernet Lan transformer H1259FNL

Type : transformer

Mounting : Surface mounting (SMD, SMT)

Material : Ferrit/ Ferrite/Cu-Ni-Sn

Pin : 40

Size : 28.19*16.0*5.72mm

Contact Now

350uH min 1500Vrms Surface mount Ethernet Lan transformer H1259FNL

Description:

Size: 28.19*16.0*5.72mm

Core No. : 8

Pin No. : 40

Inductance : 350 uH MIN

Type : lan transformer

Speed: 1000Base-T

Hi-pot :1500Vrms

PARAMETER	SPECIFICATIONS
OPERATING TEMPERATURE	0 - 70
TURNS RATIO	1 :1 ±2%
POLARITY	PER SCHEMTIC
INSERTION LOSS	100KHz		1-125 MHz
	-1.2 dB MAX		-0.2 -0.002*f ^1.4 dB MAX
RETURN LOSS (Z OUT = 100 OHM ±15%)	1-30MHz	30-60HMz	60-80MHz
	-16 dB MIN	-10+20*LOG10 (f/60 MHz) dB MIN	-10 dB MIN
INDUCTANCE(OCL) (MEDIA SIDE, 0 -70 )	350 uH MIN(MEASUREN AT 100KHz,100mVRMS AND WITH 8mA DC BIAS)
CROSSTALK, ADJACENT CHANNELS	1MHz		10-100MHz
	-50 dB MIN		-55+22*LOG 10(f/10) dB MIN
DIFFERENTIAL TO COMMON MODE REJECTION	2 MHz		30-200MHz
	-50dB MIN		-15+20*LOG 10(f/10) dB MIN
DC RESISTANCE 1/2 WINDING	.65 OHMS MAX
DC RESISTANCE IMBALANCE	.065 OHMS MAX (CENTER TAP SYMMETRY)
INPUT -OUTPUT ISOLATION	1500 VRMS MIN @ 60 SECONDS

350uH min 1500Vrms Surface mount Ethernet Lan transformer H1259FNL

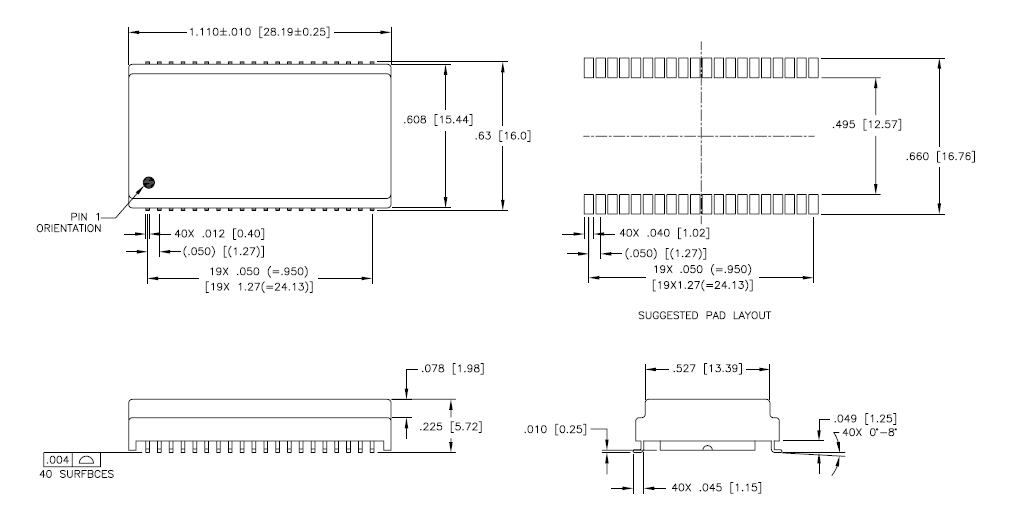

Shape and Dimensions:

Product Tags:

small electric transformer
