Module DL 100Base T ether LAN 20P Pulse Transformer H1164FNL RoHS Certification

Name: Module DL 100Base T ether LAN 20P Pulse Transformer H1164FNL RoHS Certification
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : H1164FNL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal,

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel ,Tube

Product name : Module DL 100Base-T ether LAN 20P Pulse Transformers H1164FNL

Application : Power

Type : Pulse Transformers

Operating Temperature : standard

Pin : 20

Gender : Female

Contact Now

Module DL 100Base-T ether LAN 20P Pulse Transformers H1164FNL

Description:

1. Single Port Lan Transformer

2. 10 / 100base-t transformer

3. SMD, 16 pins

4. Design Flexible

5. Files : PDF / Datasheet / 3D / IGS / Step / Stp

Applications:

1. Wireless Smart Camera Network

2. DTXdispatching telephone exchange

3. Unmanaged industrial Ethernet switch

4. Intelligent Residential System

PARAMETER	SPECIFICATIONS
OPERATING TEMPERATURE	0 - 70
TURNS RATIO	TX		RX
	2 : 1±2%		1 :1 ±2%
POLARITY	PER SCHEMTIC
INSERTION LOSS	100KHz		1-125 MHz
	-1.2 dB MAX		-0.2 -0.002*f ^1.4 dB MAX
RETURN LOSS (Z OUT = 100 OHM ±15%)	1-30MHz	30-60HMz	60-80MHz
	-16 dB MIN	-10+20*LOG10 (f/60 MHz) dB MIN	-10 dB MIN
INDUCTANCE(OCL) (MEDIA SIDE, 0 -70 )	350 uH MIN(MEASUREN AT 100KHz,100mVRMS AND WITH 8mA DC BIAS)
CROSSTALK, ADJACENT CHANNELS	1MHz		10-100MHz
	-50 dB MIN		-50+17*LOG 10(f/10) dB MIN
DIFFERENTIAL TO COMMON MODE REJECTION	2MHz		30-200MHz
	-50 dB MIN		-43+22*LOG 10(f/10) dB MIN
DC RESISTANCE 1/2 WINDING	.65 OHMS MAX
DC RESISTANCE IMBALANCE	.065 OHMS MAX (CENTER TAP SYMMETRY)
INPUT -OUTPUT ISOLATION	1500 VRMS MIN @ 60 SECONDS

Module DL 100Base-T ether LAN 20P Pulse Transformers H1164FNL

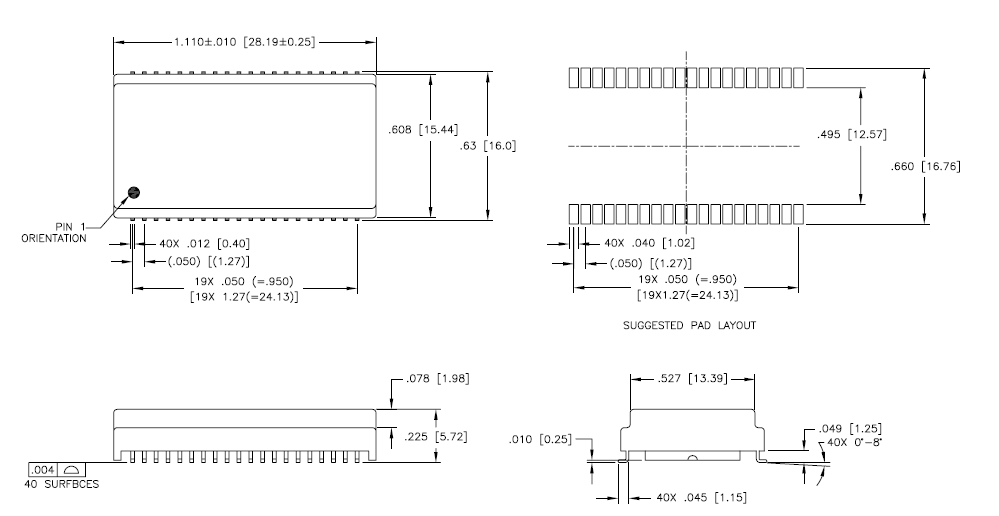

Shape and Dimensions:
