TEZ Transformer with Zakres mocy 0.5~50VA, 24~500V 50/60Hz
Typical application of the SEP0601= B78416A2360A003 Ultrasonic Sensors transformer
- Ultrasonic park assist
- Industrial distance measuring
- Robotics
- Others
Characteristics and ordering codes
| Trader PN# | Our PN# | Power/ VA | ta (℃) | | | Weight/KG |
| TEZ 0.5/D | DB-13-0.5B | 0.5 | 60 | | | 0.05 |
| TEZ 1.5/D | DB-14-1.5B | 1.5 | 60 | | | 0.07 |
| TEZ 1.8/D | DB-14-1.8B | 1.8 | 40 | | | 0.07 |
| TEZ 2.0/D | DB-14-2.0B | 2.0 | 60 | | | 0.09 |
| TEZ 2.5/D | DB-15-2.5B | 2.5 | 40 | | | 0.10 |
| TEZ 2.6/D | DB-15-2.6B | 2.5 | 60 | | | 0.12 |
| TEZ 4.0/D | DB-15-4.0B | 4.0 | 60 | | | 0.15 |
| TEZ 4.5/D | DB-15-4.5B | 4.5 | 60 | | | 0.15 |
| TEZ 6.0/D | DB-15-06B | 6.0 | 60 | | | 0.20 |
| TEZ 10.0/D | DB-15-10B | 10.0 | 60 | | | 0.28 |
| TEZ 16.0/D | DB-15-16B | 16.0 | 60 | | | 0.42 |
| TEZ 20.0/D | DB-15-20B | 20.0 | 60 | | | 0.60 |
| TEZ 22.0/D | DB-15-22B | 22.0 | 60 | | | 0.55 |
| TEZ 25.0/D | DB-15-25B | 25.0 | 60 | | | 0.70 |
| TEZ 30.0/D | DB-15-30B | 30.0 | 60 | | | 0.80 |
| TEZ 40.0/D | DB-15-40B | 40.0 | 60 | | | 0.80 |
| TEZ 50.0/D | DB-15-50B | 50.0 | 60 | | | 1.00 |

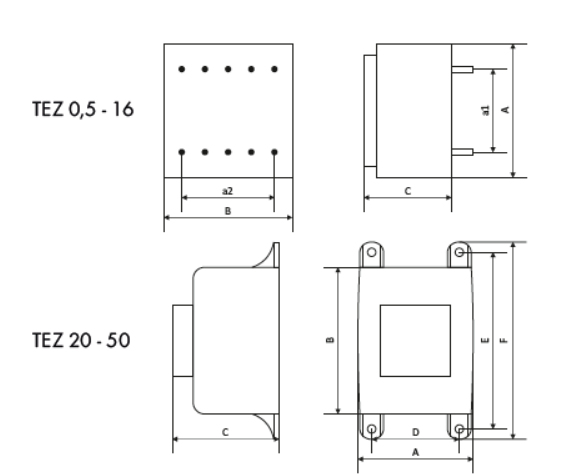

Shape and Dimensions:

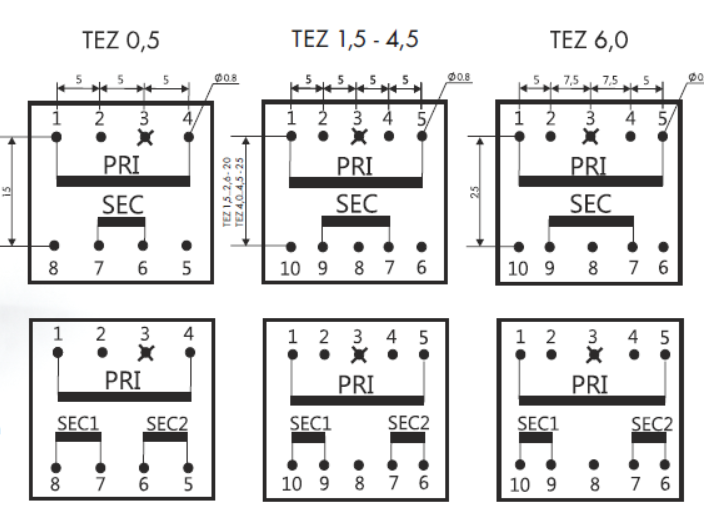

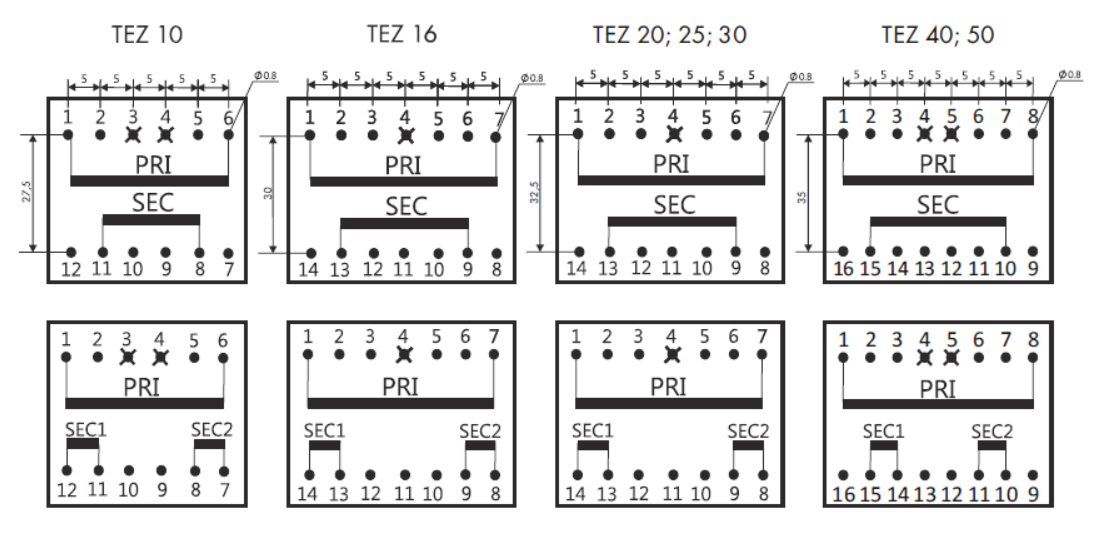

Schematic:
Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, and NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
NorthBound Networks is the OEM for this project.

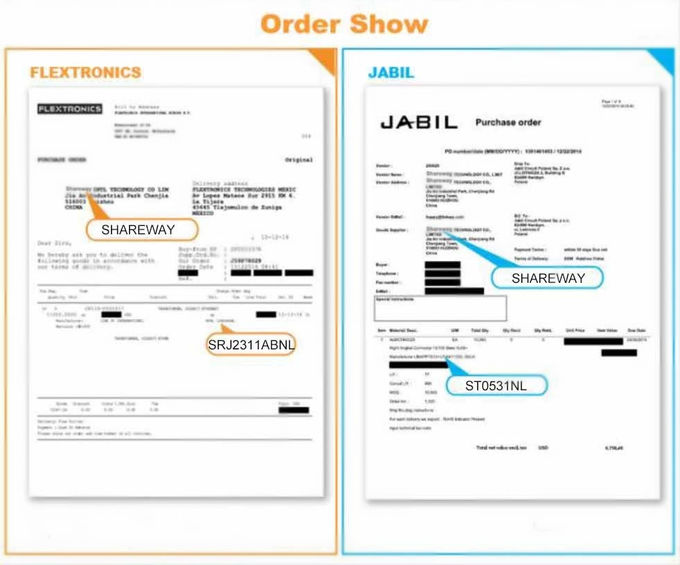

Order Show :

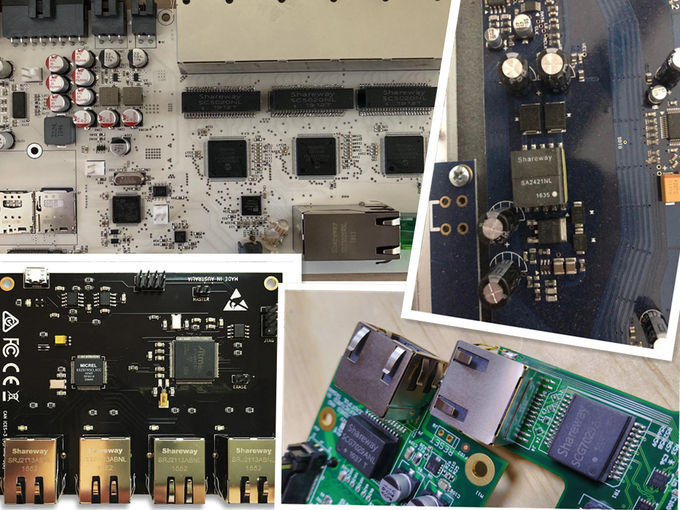

Application Show :
FAQ:
Q: Can I have samples for testing quality?
A: Yes, you can buy some samples of any of our products for testing quality and market
Q: What is the delivery time if we place an order?
A: it depends on order quantities. Usually, we can deliver goods within 3-5 working days for small orders, for bigger quantities, let’s confirm when you place the official order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Services, we turn your idea into reality.
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with the required order quantity. Please just send us the information about your Logo.
