DC / DC Converter Surface Mount Transformer Temperature Rise Less Than 20℃

Name: DC DC Converter Surface Mount Transformer Temperature Rise Less Than 20
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Tray, Tape or Reel

Product name : EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM Small Signal Transformer

Transformer type : EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM

Application : DC/DC converter

Type : Powr transformer

Mount : Surface Mount

Temperature rise : Temperature rise

Contact Now

EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM Small Signal Transformer

ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER	TEST CONDITIONS	VALUE
D.C. RESISTANCE 3-5	@20°C	0.034 ohms max
D.C. RESISTANCE 2-1	@20°C	0.077ohms max
D.C. RESISTANCE 6-9	tie(6+7,9+10),@20°C	0.021 ohms max
INDUCTANCE 3-5	10KHz,100mVAC,Ls	9.0uH min.
SATURATION CURRENT	20% rolloff from initial	>8A
LEAKAGE INDUCTANCE 3-5	tie(1+2,6+7+9+10),100KHz,50mVAC,Ls	180nH typ.250nH max
DIELECTRIC 3-6	tie(2+5,6+7),1875VAC,1 second	1500VAC,1minute
DIELECTRIC 1-5	625VAC,1 second	500VAC,1minute
TURNS RATIO	(3-5):(2-1)	3:1±2%
TURNS RATIO	(3-5):(6-9),tie(6+7,9+10)	1.5:1±2%

GENERAL SPECIFICATIONS:

OPERATING TEMPERATURE RANGE: -40°C TO +125°C , including temp rise.

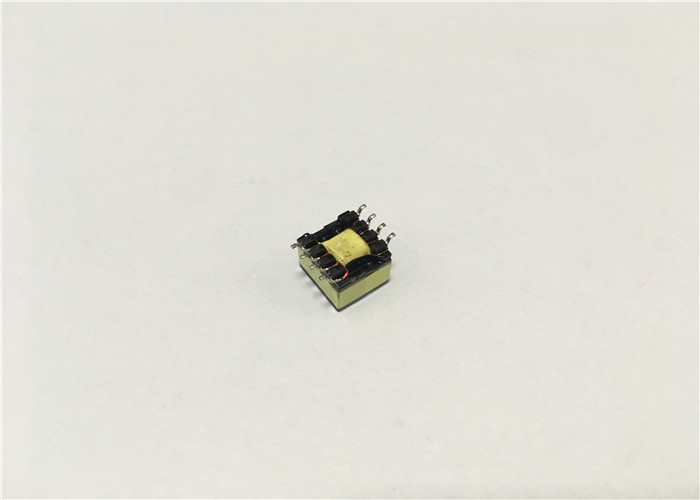

Product Picture:

DC / DC Converter Surface Mount Transformer Temperature Rise Less Than 20℃

EI /EE/ EF/EER/EFD/ER/EPC/UI/CI/EP/RM Small Signal Transformer

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Product Tags:

small signal isolation transformer

10 pin transformer

Buy cheap DC / DC Converter Surface Mount Transformer Temperature Rise Less Than 20℃ product
