Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base -TX

Name: Board Guide JXD20011NL 1 Port RJ45 Magjack Connector Through Hole 10100 Base TX
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : JXD2-0011NL

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX

Orientation : Vertical

Termination : Solder

Number of Cores per Jack : 4

Shielding : Shielded

Features : Board Guide

Contact Now

Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX

Description:

Gigabit Transf. Modules With PoE
100-1000M Single Port Tab
10-100M Single Port Tab
ADSL Line Transformer-05
10-100M Dual Port Transf. Mods.
ADSL Line Transformer-01
1000M Single Port Tab
64 KBPS Interface Transformers T r x
10-100M Quad Port Transf. Mods.
1000M Single Port Tab
VDSL Transformers

Feature:

Part Status: Active
Connector Type : RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.663" (16.85mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Guide
Tab: Direction User Selectable
Contact Material: Copper Alloy
Contact: Finish Gold
Operating Temperature: -40°C ~ 85°C
Contact Finish Thickness: 30.0µin (0.76µm)
Shield Material: Brass

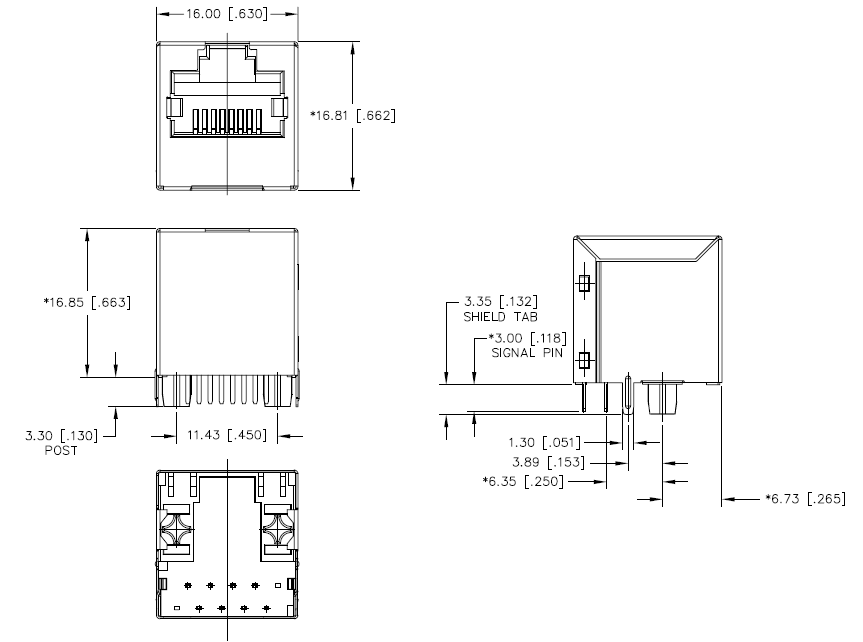

Dimension:
Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base -TX
