EP7 Miniature Flyback Transformer DC/DC Converters EP-581SG 13.3*10.0*9.0mm Size

Brand Name : Shareway

Model Number : EP-581SG

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : 13.3*10.0*9.0mm EP7 Transformer for fly-back DC/DC converters EP-581SG

Size : 13.3*10.0*9.0mm

Type : EP7 Transformer

Application : Fly-back DC/DC converters

Turns Ratio : 1:1

HI-POT : 1500 Vrms

Contact Now

13.3*10.0*9.0mm EP7 Transformer for fly-back DC/DC converters EP-581SG

POWER TRANSFORMERS:

  • RoHS Compliant.
  • Surface Mount Device.
  • Operating temperature range (Including self temperature rise): -40 ℃ to +125℃.



Electrical Specifications @25 ℃
Part
Number		 Turns Ratio(±3%) OCL(uH±10%)
@10KHz,0.1V		 LK(uH max)
@100KHz,0.1V		 DCR
(mΩ max)		 HI-POT (Vrms)
1-2:2-3 1-3:6-4 1-3 1-3(short pin4+6) 1-3 6-4 Pri-Sec
EP-581SG 1:1 1:0.119 L0A=300
L0.45A≥80%(L0A )		 4.0 890 13 1500

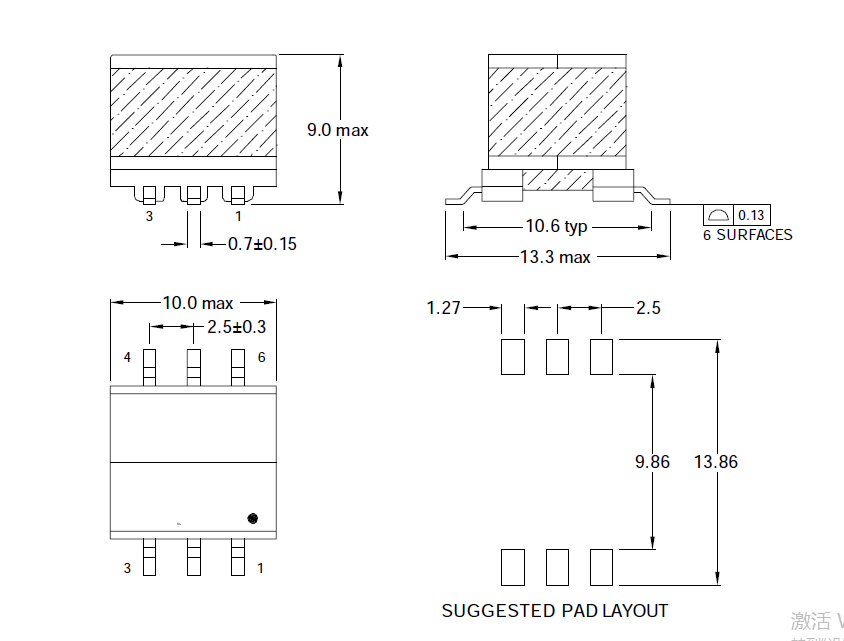

Dimensions:

EP7 Miniature Flyback Transformer DC/DC Converters EP-581SG 13.3*10.0*9.0mm Size
